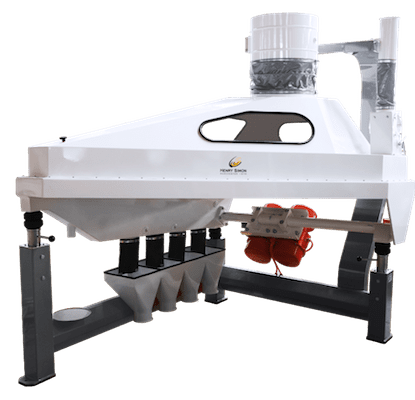

Densimetric Table HSTHTA

DENSIMETRIC TABLE
Cleaning Section

Gravity Selector is used for the classification of cereals up to four different fragments by their specific gravity.

Features & Advantages

  • Adjustable Inclination
  • Wide Observation Glasses
  • Dust Free Operation
  • Easy Cleaning

Technical Features
MODEL Capacity* Motor Power (kW) Air Requirement Weight Gross Volume
Net Gross
HSTHTA 150 0.3/2.5 2 x 0.35 120 480 705 6.4
HSTHTA 200 0.5/3.5 2 x 0.68 150 540 851 10.5
Dimensions (mm)
MODEL A B C D E F ØG H ØJ

ØK

HSTHTA 150 1520 1380 1534 1950 1320 1093 120 220 120 350
HSTHTA 200 2020 1710 1534 2100 1695 1453 150 240 120 450

*Capacity calculations are based on wheat (0.78 kg/dm3), and the figures may vary depending on the type, condition and initial contamination of the material.



Please contact us for further information.
